Design the project
Model system size, investment returns and payback from real energy data before construction begins.
AmpauraGateway
Connect existing assets. Validate controls. Execute locally.
Bring approved site devices into one local control layer, check each operating target against real constraints and return telemetry to AmpauraConnect.
Check device compatibility
Different devices. One command language.

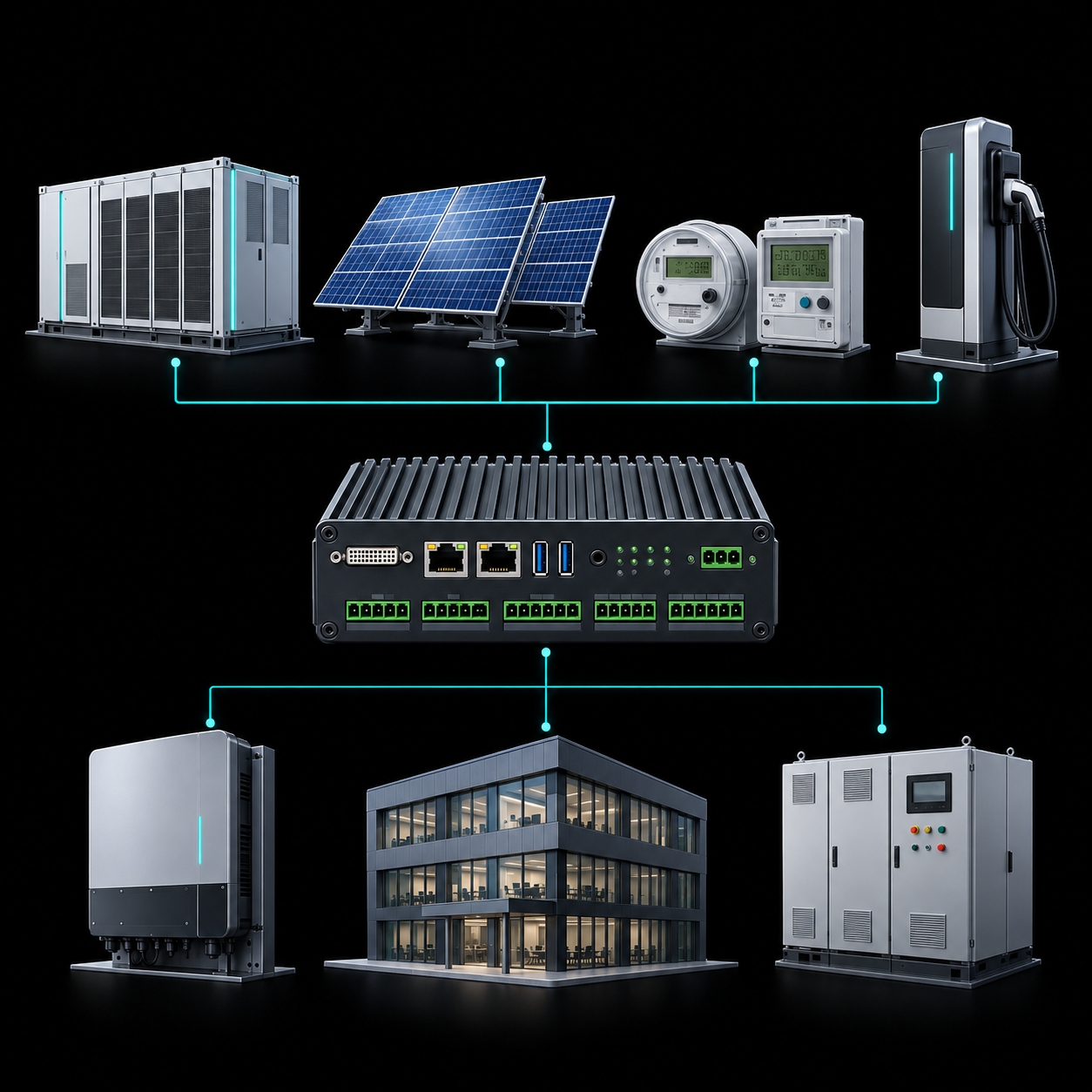

AmpauraGateway connects approved PV systems, batteries, meters, EV chargers and inverters through one site-level communications layer.
Local hardware inside a CEC-listed grid communication path.
AmpauraConnect provides the CEC-listed CSIP-AUS v1.2 software communication client. Deployed with AmpauraGateway, it supports site-level communication and local execution for applicable network projects.
- CSIP-AUS v1.2
- Testing completed, CEC listed and integrated with SA Power Networks.
- CE · RCM
- Hardware compliance for the certified AmpauraGateway model.
- Additional DNSPs
- Rollouts continue through each network and project commissioning process.
Software listing, hardware certification and site acceptance are separate scopes. Each project still follows the relevant DNSP and equipment commissioning process.
Control continues when the internet does not.
Gateway retains approved schedules, operating limits and fallback controls locally. When service returns, stored records synchronise and remote operation resumes.
- Connected
Telemetry and commands move between the site and AmpauraConnect.
- Connection interrupted
Local control remains active and site data is retained by the Gateway.
- Reconnected
Stored records synchronise before normal cloud operation resumes.
Deploy once. Improve remotely.
Keep the operating layer current without making routine site visits part of the job.
Commission
Bring the site online with its connected assets, operating limits and communications settings in place.
Monitor
Review Gateway connection state, last contact and software version across the fleet.
Update
Deploy software releases through a controlled rollout, starting with selected pilot sites.

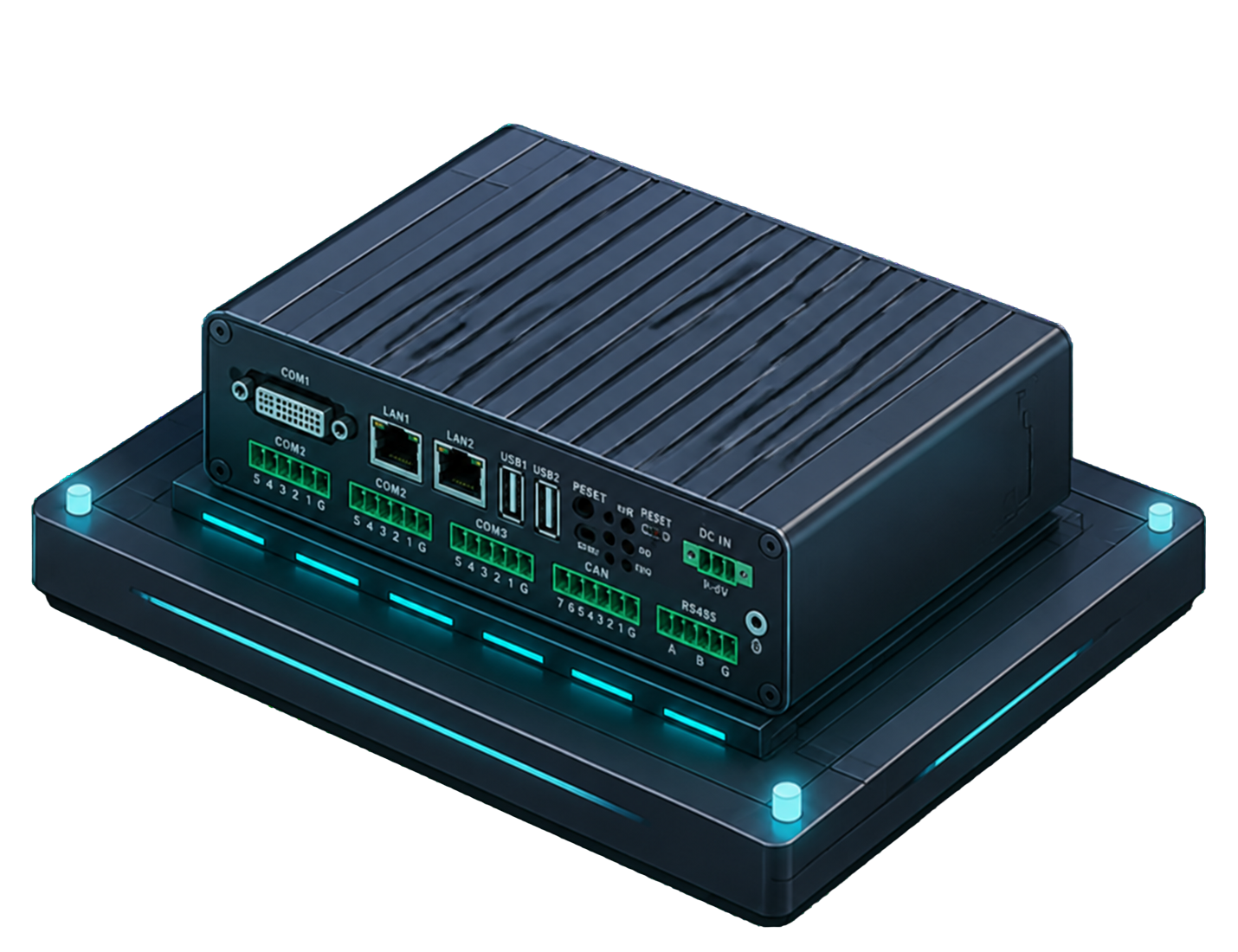

Hardware specification
AURA-IMC-500
Industrial edge hardware for reliable site connectivity, local control and gateway operations.
- CPU
- ARM Cortex-A53 1.2GHz quad-core
- Memory
- 2GB LPDDR4X
- Storage
- 16GB eMMC
- 4G Network
- 1x 4G module SMA interface
- Wi-Fi / Bluetooth
- 1x Wi-Fi / Bluetooth 5.0
- Networking - Ethernet
- 1x RGMII ETH (LAN1), 10/100/1000Mbps adaptive; 1x RMII ETH (LAN2), 10/100Mbps adaptive; RJ45 interface
- Interface - Serial Port
- RS485/232 x 4, CAN x 2
- Interface - USB
- 2x USB 2.0 HOST, Type-A interface
- DI / DO
- 4x DI, 4x DO
- Power Supply
- DC 9V - 36V input
Bring mixed-brand energy hardware under one control layer.
Make your site ready for coordinated energy control with AmpauraGateway.
Explore more Ampaura products.
Optimise continuously
Respond to live load, tariffs, solar production and device status as site conditions change.
Control with intelligence
Apply operating strategies that balance site constraints and improve energy value over time.
